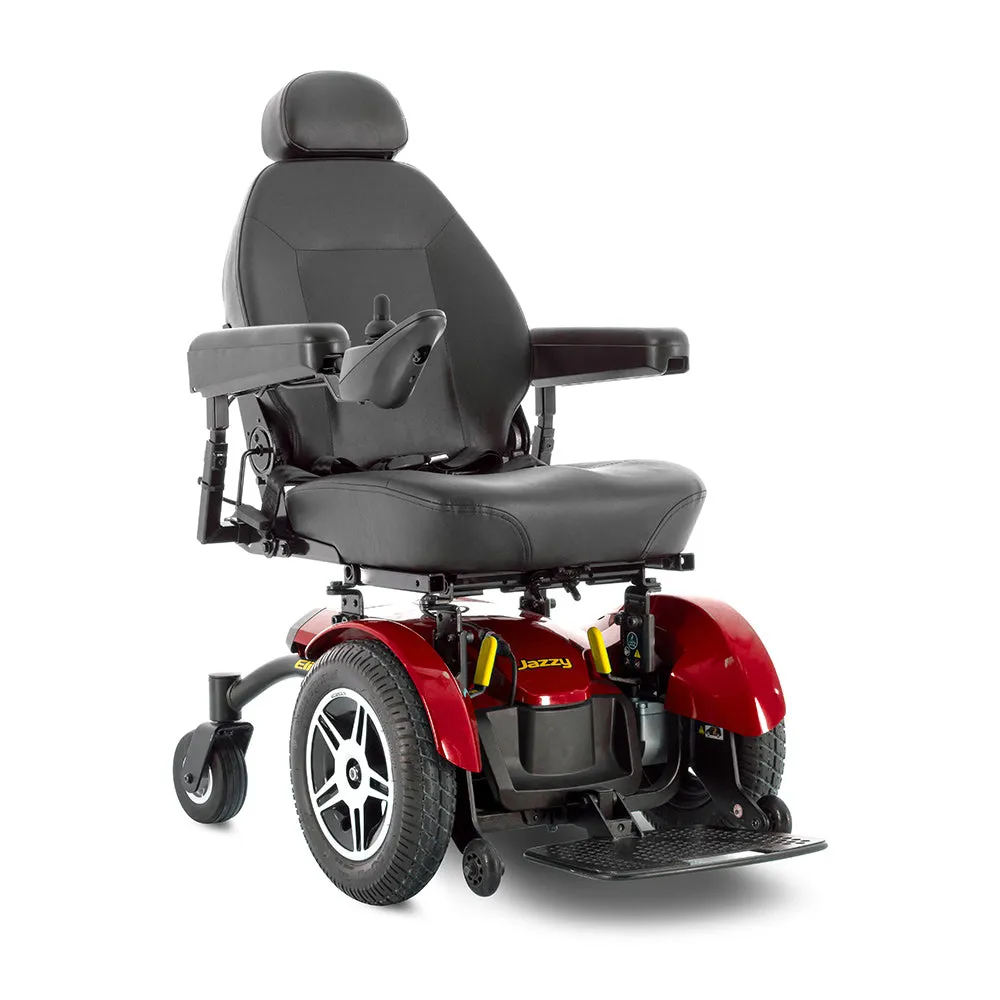

The Jazzy® Elite 14 is designed for excellent indoor maneuverability and outstanding outdoor capability. The Jazzy Elite 14 features 14” drive wheels for enhanced outdoor performance combined with a front-wheel drive design to provide tight turns around corners.

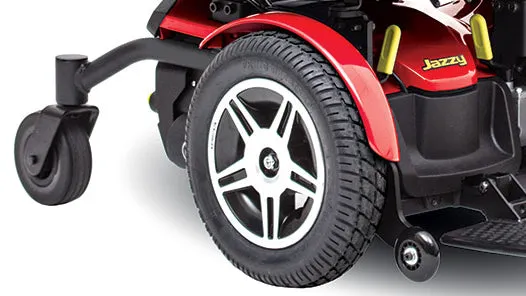

Large front wheels offer extra absorption over obstacles for superb climbing capabilities along with front anti-tip wheels for transitioning over grade changes and handling various terrains with ease.
- 300 lbs. weight capacity
- Front-wheel drive design for excellent maneuverability
- 14" knobby tires and optimum weight distribution provide superior traction
- Red or blue color-through shroud
- 50 amp controller
- Extended 13-month limited warranty
-
Available Accessories: Arm Mount Saddlebag (Small), Arm Mount Saddlebag (Large), Cup Holder, Dual Crutch and Cane Holder, Rear Basket, Walker Holder, Pride Flag, Oxygen Holder, Elevated Leg Rests, Heel Loops, Swing Away Footrests, Jazzy Cover, XLR USB Charger
| Model | Jazzy Elite 14 |
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24" |
| Width1 | 24.25" |
| Length1,2 | 35.5" |
| Maximum Speed3 | Up to 4 mph |
| Ground Clearance1 | 3" |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 14" |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two-motor, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 20"W x 20"D |
| High-Back Seat-to-Floor Range | 20" - 22" |
| Synergy® Seating | 20"W x 20"D |
| Synergy® Seat-to-Floor Range | 15.75" - 17.75" |
| Standard Electronics | 50A, Dynamic Shark |
| Battery Size (2 required) | 12 volt, NF-22 |
| Standard Battery Charger | 5A, off-board |
| Per-Charge Range3,6 | Up to 9.8 miles |
| Battery Weight5 | 37 lbs. each |
| Weight of Heaviest Piece4 | 99 lbs |
| Standard Seat Weight | 52 lbs. (high-back) |
| Standard Seat Size | 20"x18-20" |
| Medicare Code Coverage | Group 2: Standard (K0822/K0823) |
| Warranty | 5-year limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors; 13-month limited on batteries |
